AI Allwinner H618 Board WiFi6+Bluetooth 5.0 Android Linux اللوحة الأم

This is a board product of the Allwinner series, mainly for makers and embedded entry developers. It can be used as a mobile single-board computer and embedded motherboard, with office, education, programming development, and embedded development functions.

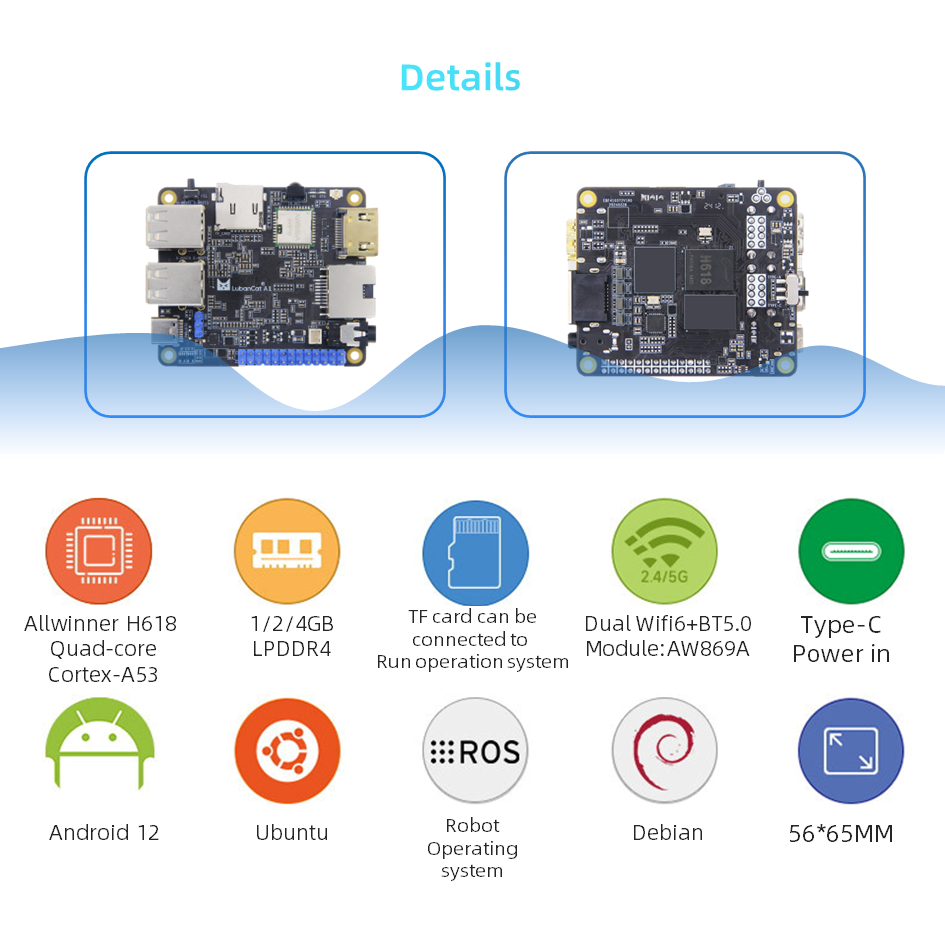

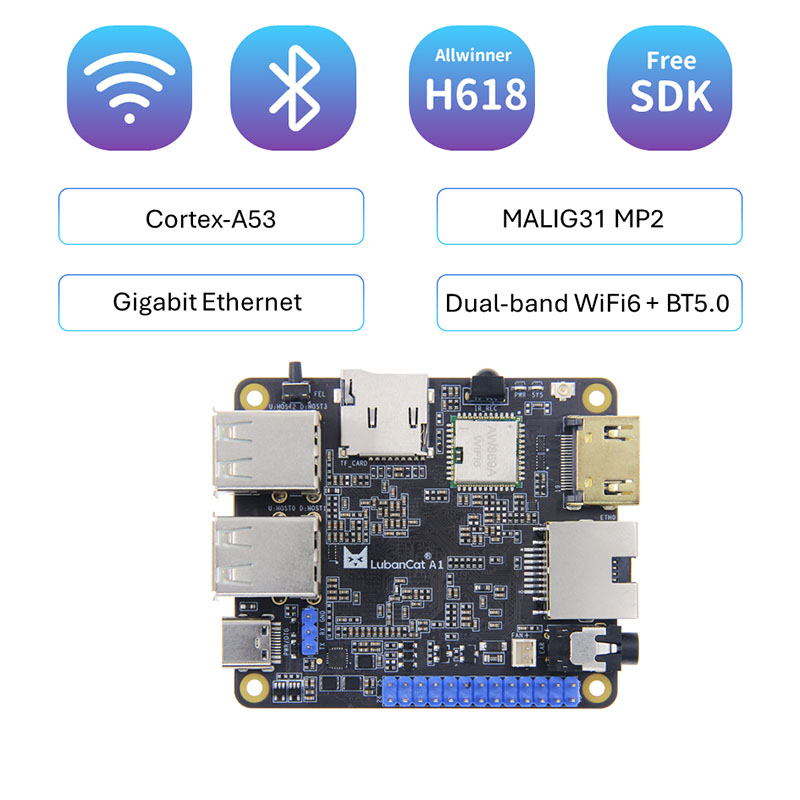

Using Allwinner H618 as the main chip, with dual-band WiFi6+BT5.0 wireless module, USB2.02HOST/OTG, HDMI2.0, Gigabit Ethernet, TF card holder and other peripherals, 26Pin unused pins are brought out, supporting GPIO, SPI, UART, PWM functions.

The AI Allwinner H618 Development Board WiFi6+Bluetooth 5.0 Android Linux Motherboard provides a variety of memory configurations to choose from, with a size of only 56*65mm, small and exquisite, low power consumption, high performance, and can easily run Linux or Android systems.

Officially supports mainstream Android 12, Debain, and Ubuntu operating system images, which can be applied to 4 different application environments.

Completely open source, providing official tutorials, complete SDK driver development packages, design schematics and other resources to facilitate user use and secondary development.

AI Allwinner H618 Development Board WiFi6+Bluetooth 5.0 Android Linux Motherboard Paramters

 CPU: Allwinner H618, 4-core 64-bit Cortex-A53

 GPU: Mali G31 MP2

 Memory: Onboard LPDDR4, 1/2/4GB

 Storage: eMMC, 8/32GB, supports eMMC boot system; non-eMMC version requires SD card boot

 Power interface: 5V@3A DC input, Type-C interface, can also be used to burn images

 Ethernet: 10/100/1000M adaptive Ethernet port

 USB2.0: USB-HOSTType-A interface*3; USB-OTG*1 (Type-A and Type-C are shared and can be switched by switch)

 USB-OTG selection on: Host when switched to Type-A, Device when switched to Type-C

 HDMI: HDMI2.0 screen interface*1, the highest resolution supports 4096x2160@60fps

 WiFi+Bluetooth: Onboard support 2.4G/5.8G dual-band WiFi6+BLE5.0, model: AW869A

 TF card holder: SD3.0 interface, supports up to 512GB, supports TF card boot system

 10 interface: 26 Pin 2.54 pin interface, supports GPIO, SPI, UART, PWM function

 Debug serial port: default parameter 115200-8-N-1

 Audio: 3.5mm headphone output interface*1;

 Button: burn button*1

 Infrared receiver: supports infrared remote control function

 Fan interface: supports installation of 5V fan for cooling

 LED: power indicator*1; system indicator*1

 Size: 56*65mm
